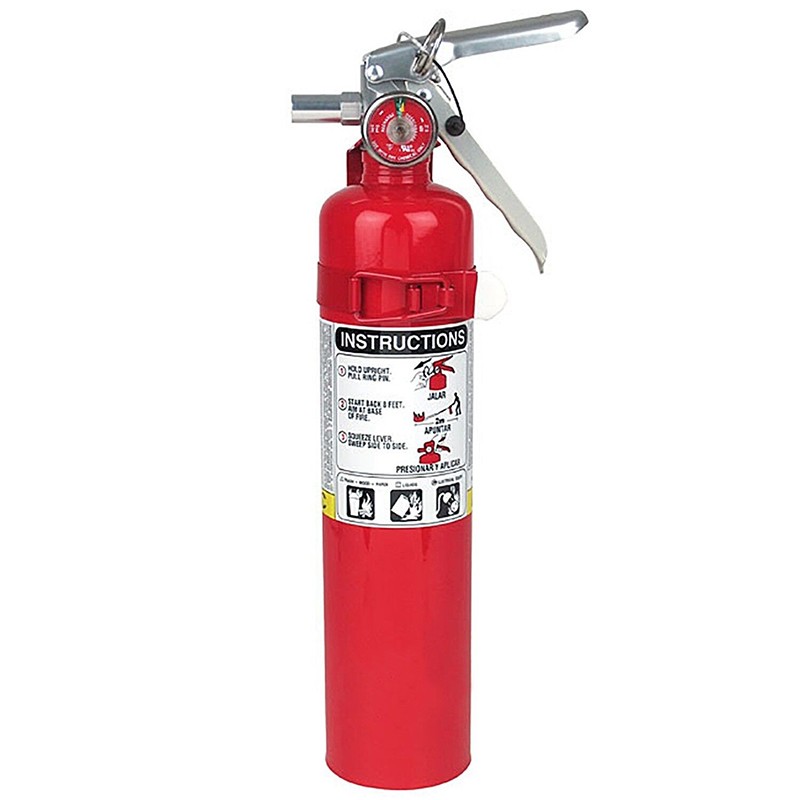

UL 2.5LB 1.1KGS ABC Dry Powder Extinguisher
UL Extinguisher Product Details
Place of Origin: Jianshan city, Zhejiang Province, China
Brand Name: BOYO INTERIOR MATERIALS
Certificate: UL/ISO
Model No.: BYD-1.1ULABC
UL Extinguisher Payment & Shipping Terms
Minimum Order Quantity: 2.5LB 1.1KGS ABC Dry Powder Extinguisher 100PCS
Price: 2.5LB 1.1KGS ABC Dry Powder Extinguisher According to The Final Quantity and Cost
Package: 2.5LB 1.1KGS ABC Dry Powder Extinguisher 3 Corrugated Paper Boxes with Pallets for LCL， FCL without Pallets
Delivery Time: 2.5LB 1.1KGS ABC Dry Powder Extinguisher 7-15 Days
Payment term: 2.5LB 1.1KGS ABC Dry Powder Extinguisher L/C at Sight, T/T, D/P at Sight
Price Term: FOB SHANGHAI /NINGBO Port, CNF/CIF Destination Port
UL 2.5LB 1.1KGS ABC Dry Powder Extinguisher
UL 2.5LB 1.1KGS ABC Dry Powder Extinguisher Description
Model No.: BYD-1.1ULABC Filling Weight: 2.5LB (1.1KGS)
Working Pressure: 15BAR Test Pressure: 40BAR
Filling Powder: 90% ABC Powder Type: ABC Dry Powder Extinguisher
UL 2.5LB 1.1KGS ABC Dry Powder Extinguisher Special Features
1. UL approval certificate for ABC dry powder extinguishers of 2.5LB, 5.5LB, 10LB and 20LB.
2. UL extinguisher Be filled with 90% ABC dry powder, it has strong ability to extinguish the fire.
3. UL extinguisher Light weight, easy to carry and operate, widely used in cars, kitchens, offices, etc.
UL 2.5LB 1.1KGS ABC Dry Powder Extinguisher Technology Data
ITEM | UNIT | SPECIFICATION |
FILLING WEIGHT | LB | 2.5 |
CAPACITY | L | 1.6 |
CYLINDER HEIGHT | MM | 330 |
CYLINDER DIAMETER | MM | 86 |
CAPACITY | KGS | 1.1 |
FULL WEIGHT OF EXTINGUISHER | KGS | 2.4 |
TEMPERATURE RANGE | ℃ | bellow -40-50 |
WORKING PRESSURE | BAR | 15 |
TEST PRESSURE | BAR | 40 |
FIRE RATING | BAR | 1A/10B/C |
MIN. DISCHARGE TIME | S | 8 |
MIN. DISCHARGE DISTANCE | M | 3 |

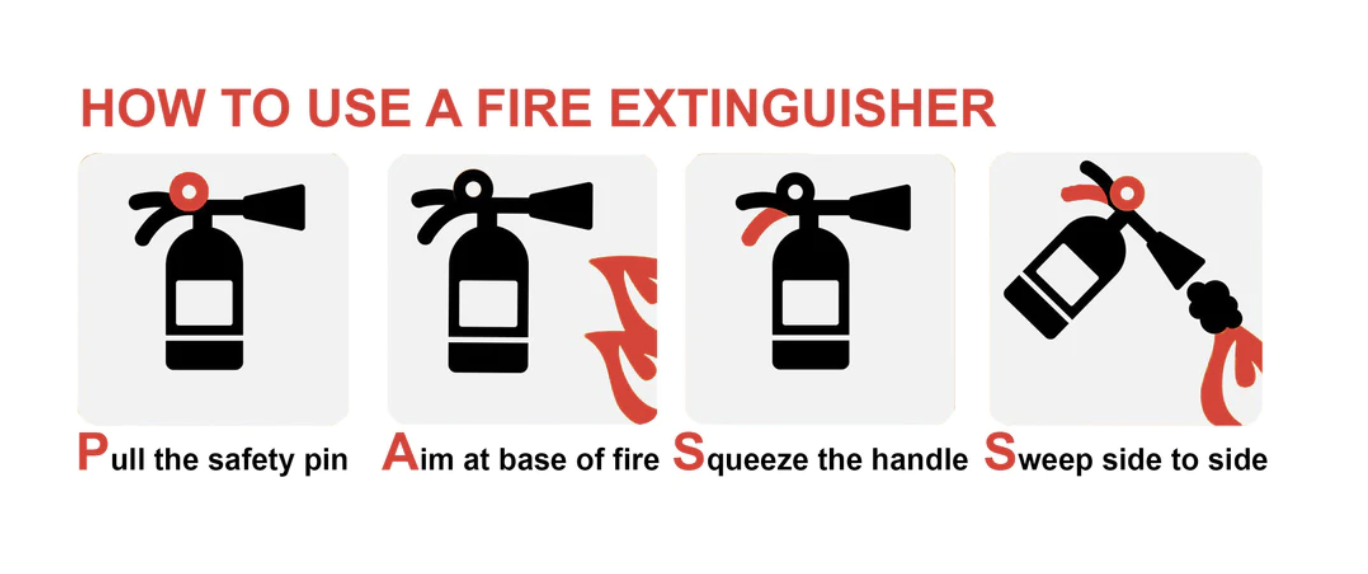

How to Use a UL 2.5LB 1.1KGS ABC Dry Powder Extinguisher
The First Step: Pulling The Extinguisher Safety Pin
Keep the cylinder upright and pull the safety pin. The safety pin ensures that the content remains pressurized; once it is taken out, you will be able to activate the extinguisher and use it to stop the fire.
The Second Step: Aiming The Extinguisher Nozzle Against The Fire Source
Once the safety pin is out, aim the nozzle against the source of the flames.
The Third Step: Squeezing The Extinguisher Handle
You will need to squeeze the handle, to push the content out for it to do its job.
The Forth Step: Sweeping Over The Source Of The Flames
To make sure that the fire is completely put out, you need to use a sweeping. motion over the source of the flames.
