  • UL 20LB 9KGS ABC Portable Dry Powder Extinguisher
  • UL 20LB 9KGS ABC Portable Dry Powder Extinguisher
  • UL 20LB 9KGS ABC Portable Dry Powder Extinguisher
  • UL 20LB 9KGS ABC Portable Dry Powder Extinguisher
name: UL 20LB 9KGS ABC Portable Dry Powder Extinguisher
date: 2024-03-28 14:27:43
view: 294
about:

      Our company mainly sells fire extinguishers and door products, such as dry powder fire extinguisher, carbon dioxide fire extinguisher, foam fire extinguisher, automatic fire extinguisher, paint-free door.We are located in Jiangshan, Zhejiang...




DETAIL



UL 20LB 9KGS ABC Portable Dry Powder Extinguisher

UL Extinguisher Product Details

Place of Origin:  Jianshan city, Zhejiang Province, China

Brand Name:   BOYO INTERIOR MATERIALS

Certificate:     UL/ISO

Model No.:     BYD-9ULABC

UL Extinguisher Payment & Shipping Terms

Minimum Order Quantity:  UL 20LB 9KGS ABC Portable Dry Powder Extinguisher 100PCS

Price:  UL 20LB 9KGS ABC Portable Dry Powder Extinguisher According to The Final Quantity and Cost

Package: UL 20LB 9KGS ABC Portable Dry Powder Extinguisher 3 Corrugated Paper Boxes with Pallets for LCLFCL without Pallets

Delivery Time: UL 20LB 9KGS ABC Portable Dry Powder Extinguisher 7-15 Days

Payment term: UL 20LB 9KGS ABC Portable Dry Powder Extinguisher L/C at Sight, T/T, D/P at Sight

Price Term: FOB SHANGHAI /NINGBO Port, CNF/CIF Destination Port



UL 20LB 9KGS ABC Portable Dry Powder Extinguisher

UL 20LB 9KGS ABC Portable Dry Powder Extinguisher Description

Model No.: BYD-9ULABC              Filling Weight: 20LB (9KGS)

Working Pressure: 15BAR               Test Pressure: 40BAR

Filling Powder: 90% ABC Powder        Type: ABC Dry Powder Extinguisher

UL 20LB 9KGS ABC Portable Dry Powder Extinguisher Special Features

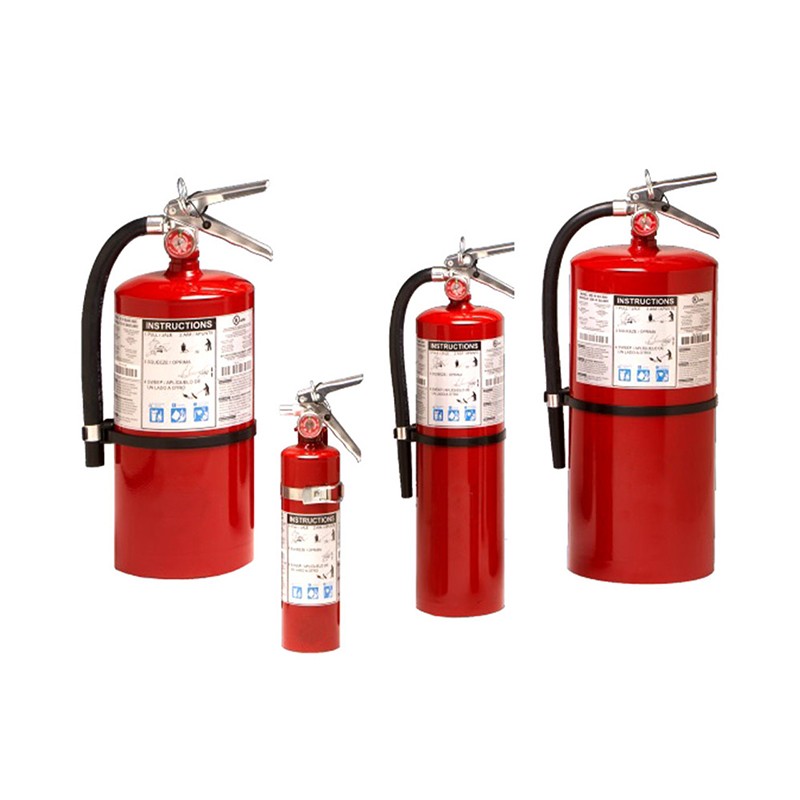

1. UL approval certificate for ABC dry powder extinguishers of 2.5LB, 5.5LB, 10LB and 20LB.

2. UL extinguisher Be filled with 90% ABC dry powder, it has strong ability to extinguish the fire.

3. can be filled with up to 9 kg of 90% dry powder, the one of the best-selling ABC fire extinguisher。

4. 20LB UL approved dry powder fire extinguisher is the biggest one of all for now. It could extinguish the fire for class A,B and C like wooden and paper fire, gas and liquid fire and electric fire.

UL 20LB 9KGS ABC Portable Dry Powder Extinguisher Technology Data

ITEM

UNIT

SPECIFICATION

FILLING WEIGHT

LB

20

CAPACITY

L

11

CYLINDER HEIGHT

MM

506

CYLINDER DIAMETER

MM

180

CAPACITY

KGS

9

FULL WEIGHT OF EXTINGUISHER

KGS

15

TEMPERATURE RANGE

bellow -40-50

WORKING PRESSURE

BAR

15

TEST PRESSURE

BAR

40

FIRE RATING

BAR

6A/80B/C

MIN. DISCHARGE TIME

S

20

MIN. DISCHARGE DISTANCE

M

5

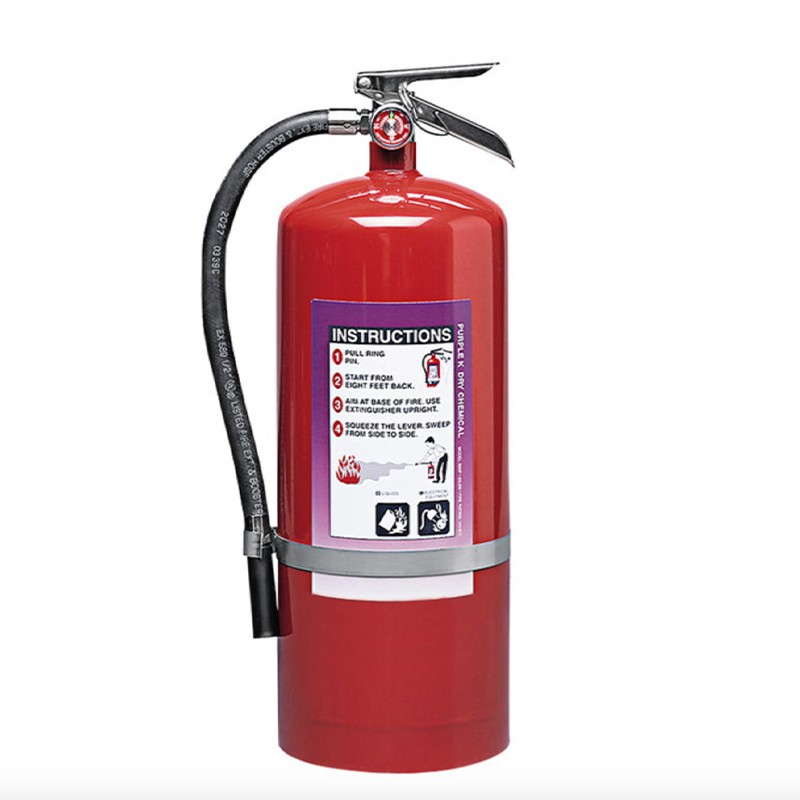

 UL 20LB 9KGS ABC Portable Dry Powder Extinguisher(图1)

How to Use a UL 20LB 9KGS ABC Portable Dry Powder Extinguisher

UL 20LB 9KGS ABC Portable Dry Powder Extinguisher(图2)

The First Step: Pulling The Extinguisher Safety Pin

Keep the cylinder upright and pull the safety pin. The safety pin ensures that the content remains pressurized; once it is taken out, you will be able to activate the extinguisher and use it to stop the fire.

The Second Step: Aiming The Extinguisher Nozzle Against The Fire Source

Once the safety pin is out, aim the nozzle against the source of the flames.

The Third Step: Squeezing The Extinguisher Handle

You will need to squeeze the handle, to push the content out for it to do its job.

The Forth Step: Sweeping Over The Source Of The Flames

To make sure that the fire is completely put out, you need to use a sweeping. motion over the source of the flames.
