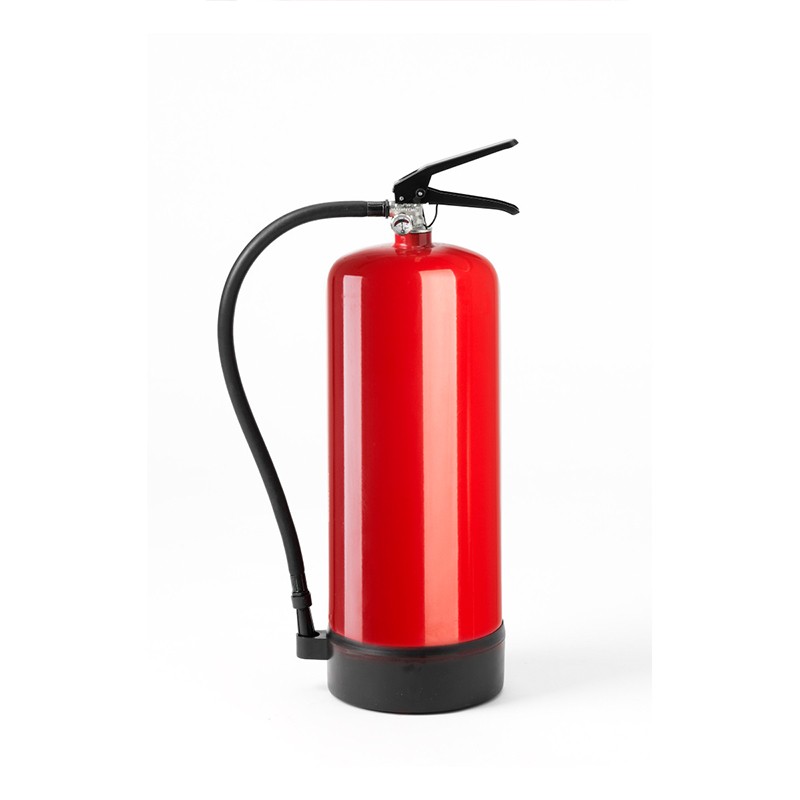

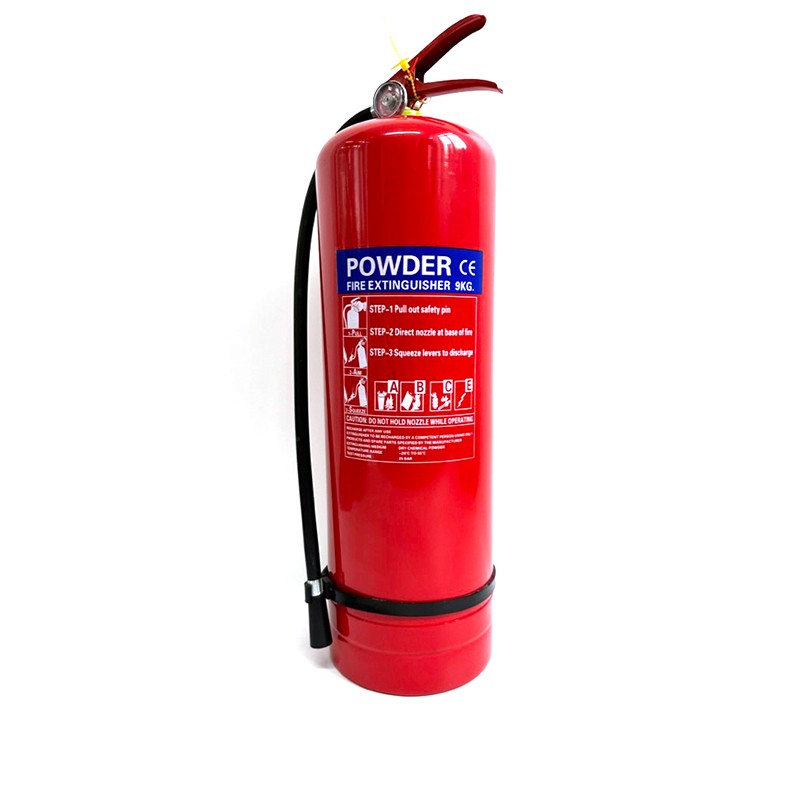

BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher
BSI EN3 9KGS Dry Powder Extinguisher Product Details
Place of Origin: Jianshan city, Zhejiang Province, China
Brand Name: BOYO INTERIOR MATERIALS
Certificate: EN3 /ISO
Model No.: BYD-9ENABC
BSI EN3 9KGS Dry Powder Extinguisher Payment & Shipping Terms
Minimum Order Quantity: BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher 100PCS
Price: BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher According to The Final Quantity and Cost
Package: BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher 3 Corrugated Paper Boxes with Pallets for LCL, FCL without Pallets
Delivery Time: BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher 7-15 Days
Payment term: BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher L/C at Sight, T/T, D/P at Sight
Price Term: FOB SHANGHAI /NINGBO Port, CNF/CIF Destination Port
BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher
BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher
Description
Model No.: BYD-9ENABC Filling Weight: 9.00KGS
Filling Rate: 55A 233BC Test Pressure: 29BAR
Filling Agent : 40% ABC Powder Type: ABC Dry Powder/Dry Chemical Extinguisher
BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher
Special Features

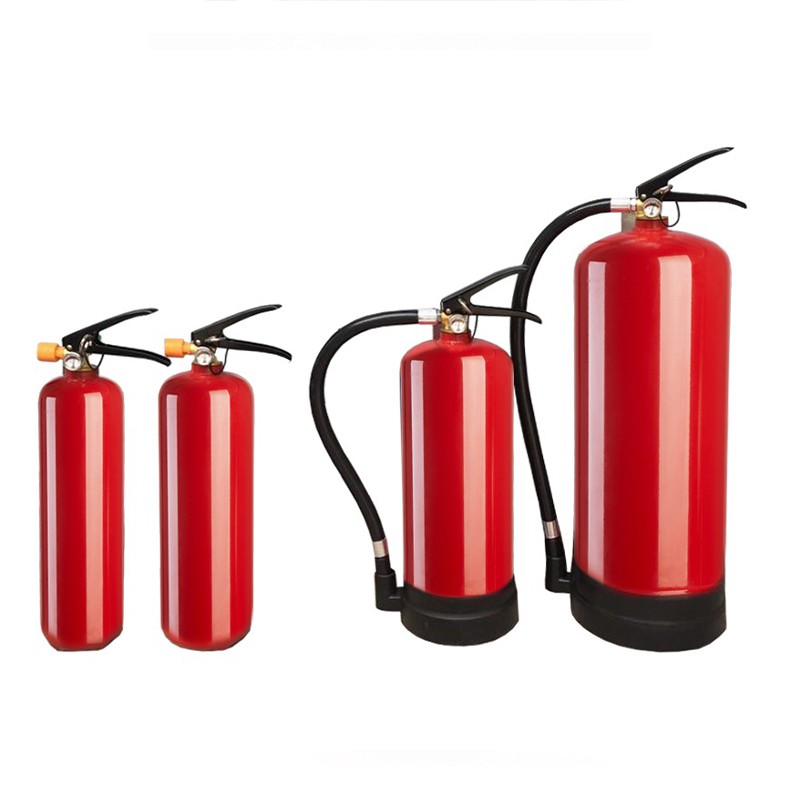

1.En approval certificate for EN 9KGS ABC dry powder extinguisher of 1kgs, 2kgs, 4kgs, 6kgs and 9kgs..
2.EN 9KGS ABC dry powder Be filled with 40% ABC dry powder, it has strong ability to extinguish the fire.
3.EN 9KGS ABC dry powder extinguisher is a popular extinguisher Light, easy to carry and operate, widely used in Factories, shopping malls, living areas, hotel, oil plants and other public places
BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher Technology Data
ITEM | UNIT | SPECIFICATION |
FILLING WEIGHT | KGS | 9 |
CAPACITY | L | 11.5 |
CYLINDER HEIGHT | MM | 515 |
CYLINDER DIAMETER | MM | 180 |
FILLING WEIGHT | KGS | 9 |
FULL WEIGHT OF EXTINGUISHER | KGS | 13.8 |
TEMPERATURE RANGE | ℃ | bellow -20-60 |
WORKING PRESSURE | BAR | 18 |
TEST PRESSURE | BAR | 29 |
FIRE RATING | BAR | 55A/233B/C |
MIN. DISCHARGE TIME | S | 13 |
MIN. DISCHARGE DISTANCE | M | 5 |
MAX. DISCHARGE LAG TIME | S | 5 |

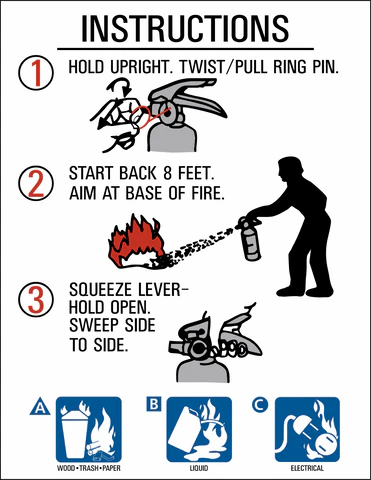

How to Use a BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher
The First Step: Pulling The Extinguisher Safety Pin
Keep the cylinder upright and pull the safety pin. The safety pin ensures that the content remains pressurized; once it is taken out, you will be able to activate the extinguisher and use it to stop the fire.
The Second Step: Aiming The Extinguisher Nozzle Against The Fire Source
Once the safety pin is out, aim the nozzle against the source of the flames.
The Third Step: Squeezing The Extinguisher Handle
You will need to squeeze the handle, to push the content out for it to do its job.
The Forth Step: Sweeping Over The Source Of The Flames
To make sure that the fire is completely put out, you need to use a sweeping. motion over the source of the flames.
What is the BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher?
The fire extinguishing agents of dry powder fire extinguishers are mainly ammonium phosphate and sodium bicarbonate (BC type sodium bicarbonate) fire extinguishing agents. The driving gas is nitrogen, and its working pressure is 1.5MPa at normal temperature. The cylinder body is made of high-quality carbon steel processed by special technology. Fire extinguishers are mainly composed of cylinders, bottle valves, spray hoses (nozzles), etc.
What is BSI EN3 9KGS EN615 40% ABC Portable Dry Powder Extinguisher scope of use?
1. Class A ordinary fire: any fire caused by solid materials such as wood, paper, cotton, cloth, plastic, etc..
2. Class B oil fire: any fire caused by flammable liquids and solid grease objects, such as gasoline, petroleum, kerosene, etc..
3. Class C gas fire: Any fire caused by gas combustion or explosion is called gas fire, such as natural gas, coal gas, etc..
