Concealed Door Hinges as the name suggests that hinge hardware is completely hidden, the appearance is not visible. Concealed Door Hinges load-bearing is better than ordinary hinges, and can reduce the door sagging hidden trouble, even if the use of a longer period of time, the door deformation sagging can also be adjusted to extend the service life of the door.
Door Hinge Payment & Shipping Terms
Price: Negotiable
Package: Corrugated carton with protective film
Delivery Time: 15-20 Days Can Delivery
Payment term: Door Hinge L/C at Sight, T/T, D/P at Sight
Price Term: FOB SHANGHAI /NINGBO Port, CFR/CIF Destination Port
Product Parameters
(According to the change of door height and width, choose different hinge quantity and installation position.)
Item name | Concealed door hinges |
Mold | BW40 |
Material | Zinc alloy |

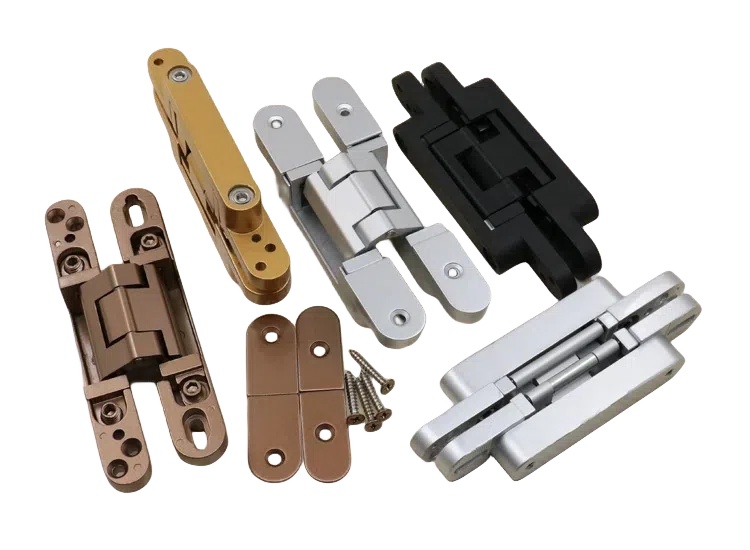

Color | Lacquered gold, silver, black, red bronze (can be customised) |

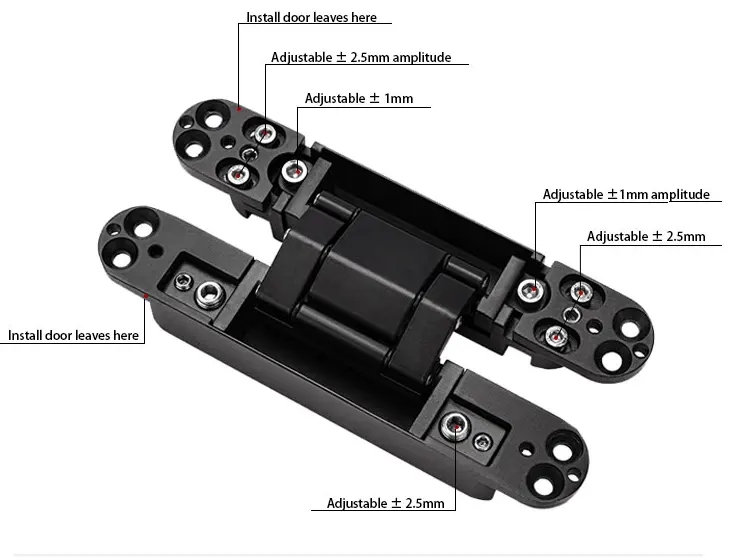

Three-dimensional adjustable parameters | Up and down ± 2.5mm Left and right ±2.5mm Front and back ±1mm |
Opening angle | 180 degree |
Installation direction | No distinction between left and right |
Application | Interior wooden door |
Adaptable door thickness | ≥35mm |
Adaptable door weight | ≤40kg |

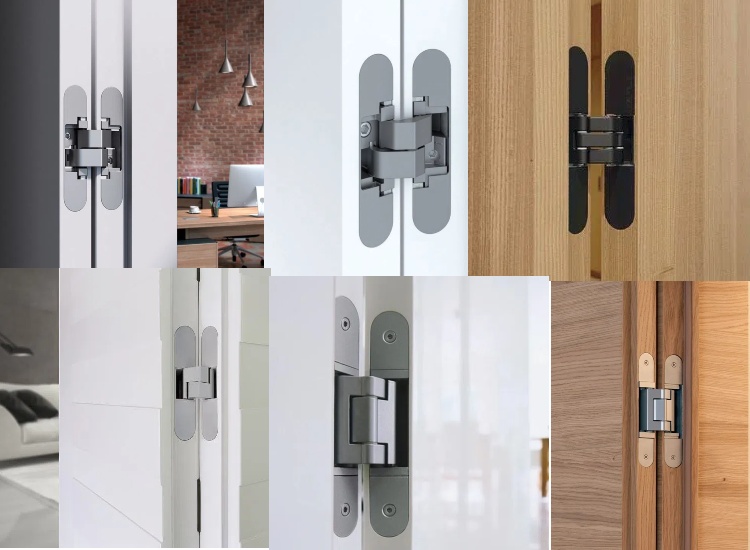

Installation scenario
Advantages of concealed door hinges
l 180 degree opening, perfect invisible
l Three-dimensional adjustment: After installation, the door can be micro-carved in all directions, providing stable adjustability.
l Silent: Imported materials ensure smooth opening and closing, silent and silent
l Maintenance-free: The force-bearing weighing parts are made of wear-resistant materials and can be opened and closed 200,000 times without damage, ensuring the service life of the product.
