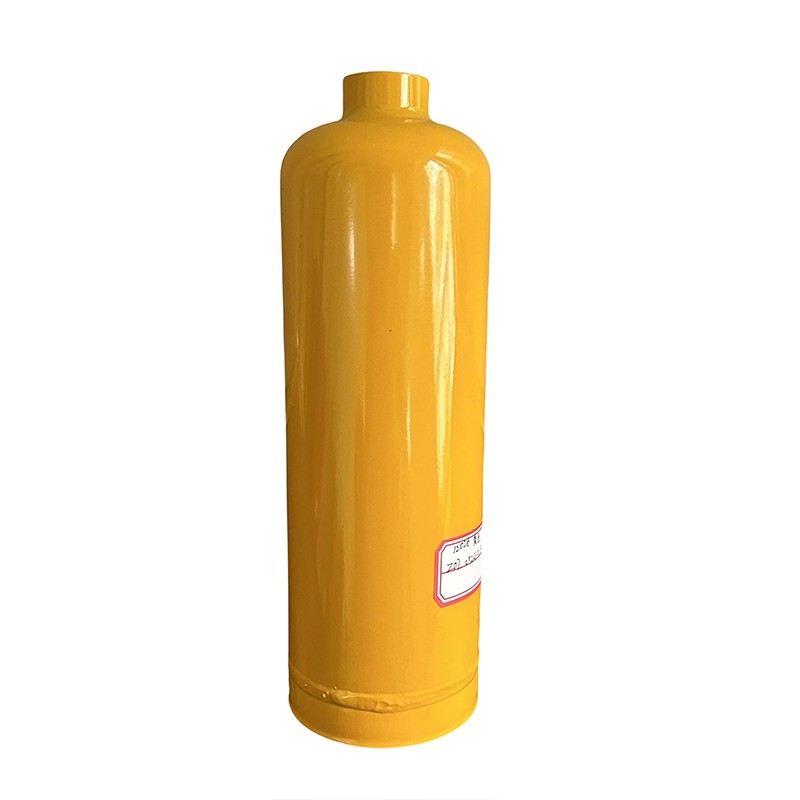

0.7KG Colored Dry Powder Fire Extinguisher Cylinder

0.7KG Colored Dry Powder Fire Extinguisher Cylinder(图1)

0.7KG Colored Dry Powder Fire Extinguisher Cylinder Product Details

Place of Origin:  Jianshan city, Zhejiang Province, China

Brand Name:   BOYO INTERIOR MATERIALS

Model No.:  12026 Yellow



0.7KG Colored Dry Powder Fire Extinguisher Cylinder Payment & Shipping Terms

Minimum Order Quantity:  0.7KG Colored DCP Extinguisher Cylinder 100PCS

Price:  0.7KG Colored DCP Extinguisher Cylinder According to The Final Quantity and Cost

Package:  0.7KG Colored DCP Extinguisher Cylinder 3 Corrugated Paper Boxes with Pallets for LCL, FCL without Pallets

Delivery Time:   0.7KG Colored DCP Extinguisher Cylinder 7-15 Days

Payment term:  0.7KG Colored DCP Extinguisher Cylinder L/C at Sight, T/T, D/P at Sight

Price Term: FOB SHANGHAI /NINGBO Port, CNF/CIF Destination Port



0.7KG Colored Dry Powder Fire Extinguisher Cylinder Description

Model No.: 12026 Yellow            Filling Weight: 0.7 KGS

Filling Rate: 8A 34BC                      Test Pressure: 29BAR

Filling Agent : ABC/BC Dry Powder Powder        Type: ABC Dry Powder/Dry Chemical Extinguisher



0.7KG Colored Dry Powder Fire Extinguisher Cylinder Technology Data

ITEM

UNIT

SPECIFICATION

CAPACITY

L

1

CYLINDER HEIGHT

MM

270

CYLINDER DIAMETER

MM

85

FILLING WEIGHT

KGS

0.7

FULL WEIGHT OF EXTINGUISHER

KGS

2

TEMPERATURE RANGE

bellow -30-60

WORKING PRESSURE

BAR

18

TEST PRESSURE

BAR

29

FIRE RATING

BAR

8A/34B/C

MIN. DISCHARGE TIME

S

8

MIN. DISCHARGE DISTANCE

M

3

MAX. DISCHARGE LAG TIME

S

5

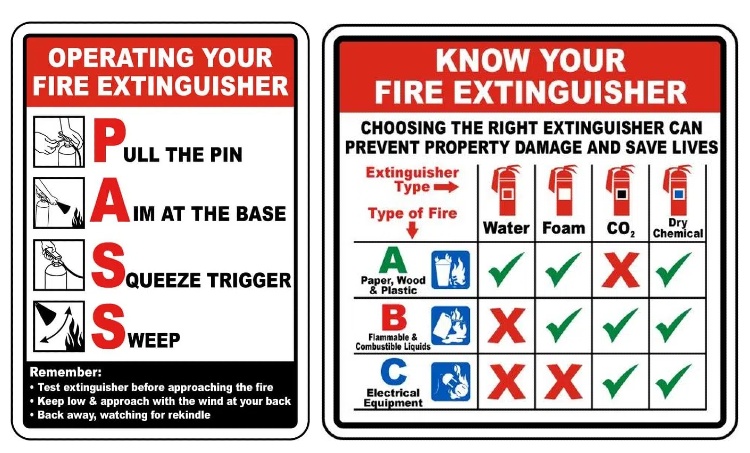

How to operate and use a fire extinguisher correctly?

0.7KG Colored Dry Powder Fire Extinguisher Cylinder(图2)

The First Step: Pulling The Extinguisher Safety Pin

Keep the cylinder upright and pull the safety pin. The safety pin ensures that the content remains pressurized; once it is taken out, you will be able to activate the extinguisher and use it to stop the fire.

The Second Step: Aiming The Extinguisher Nozzle Against The Fire Source

Once the safety pin is out, aim the nozzle against the source of the flames.

The Third Step: Squeezing The Extinguisher Handle

You will need to squeeze the handle, to push the fire extinguishing agent out for it to do its job.

The Forth Step: Sweeping Over The Source Of The Flames

To make sure that the fire is completely put out, you need to use a sweeping motion over the source of the flames.
