Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve

Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve

Product Details

Place of Origin:  Jianshan city, Zhejiang Province, China

Brand Name:   BOYO INTERIOR MATERIALS

Certificate:    CE/ISO

Model No.:     BY-JF20300

Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve

Payment & Shipping Terms

Minimum Order Quantity: Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve

Valve 100PCS

Price: Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve According to The Final Quantity and Cost

Package: Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve 3 Corrugated Paper Boxes with Pallets for LCL， FCL without Pallets

Delivery Time: Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve 7-15 Days

Payment term: V Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve L/C at Sight, T/T, D/P at Sight

Price Term: FOB SHANGHAI /NINGBO Port, CNF/CIF Destination Port

Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve

Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve

Description

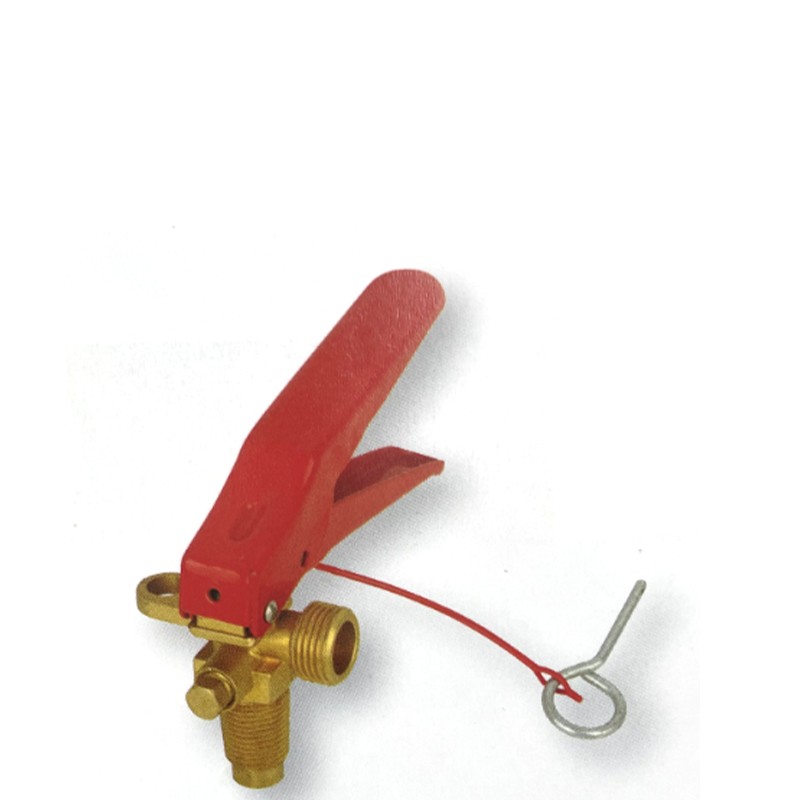

Model No.: BY-JF20300                  Materials: Brass/Alloy

Inlet Thread: PZ19.2                     Handle: Metal/Stainless Steel

Type: Carbon Dioxide Fire Extinguisher Brass Valve , Portable extinguisher valve，Brass valve

Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve

Advantages

1) The fire extinguishing valve shown is suitable for carbon dioxide fire extinguishers.

2) Easy to operate and beautiful appearance.

3) Pressure gauges, hoses and siphons can be connected as required.

4) With high quality, competitive price and professional service.

5) Pass ISO and CE certification

Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve

 Technology Data

What are the types of Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve?

1. Fuse type carbon dioxide fire extinguisher valve structure

The fuse-type valve has a simple structure, and there is a fuse locking valve button in the center of the structure. The disadvantage of fuse-type valves is that they cannot be reused and the entire valve must be replaced.

2. Diaphragm carbon dioxide fire extinguisher valve structure

There is a diaphragm in the center of the diaphragm valve structure. When the internal pressure of the cylinder reaches a certain value, the diaphragm will be pushed up by the gas, thus activating the diaphragm and causing carbon dioxide to flow out of the valve. When the pressure inside the cylinder drops, the valve automatically closes. Diaphragm valves can be reused, but because the material is prone to aging, they need to be replaced regularly.

3. Valve structure of piston carbon dioxide fire extinguisher

There is a piston and spring in the center of the piston valve structure. When the internal pressure of the cylinder reaches a certain value, the spring is compressed and the piston starts, allowing carbon dioxide to flow out of the valve. When the pressure inside the cylinder drops, the spring presses the piston back and the valve automatically closes. Piston valves can be reused, but their structures are more complex.

What is the importance of Portable CO2 Carbon Dioxide Fire Extinguisher Brass Valve ?

The fire extinguisher valve plays a key role in fire extinguishing. It can ensure the balance of air pressure inside the fire extinguisher and the accurate adjustment of the nozzle injection speed and direction, so that the fire extinguishing agent can be sprayed out with the best effect and effectively control the fire.

At the same time, during the daily use of fire extinguishers, we also need to pay attention to the status of the valve, ensure that the valve is in intact condition, and strengthen daily maintenance.
